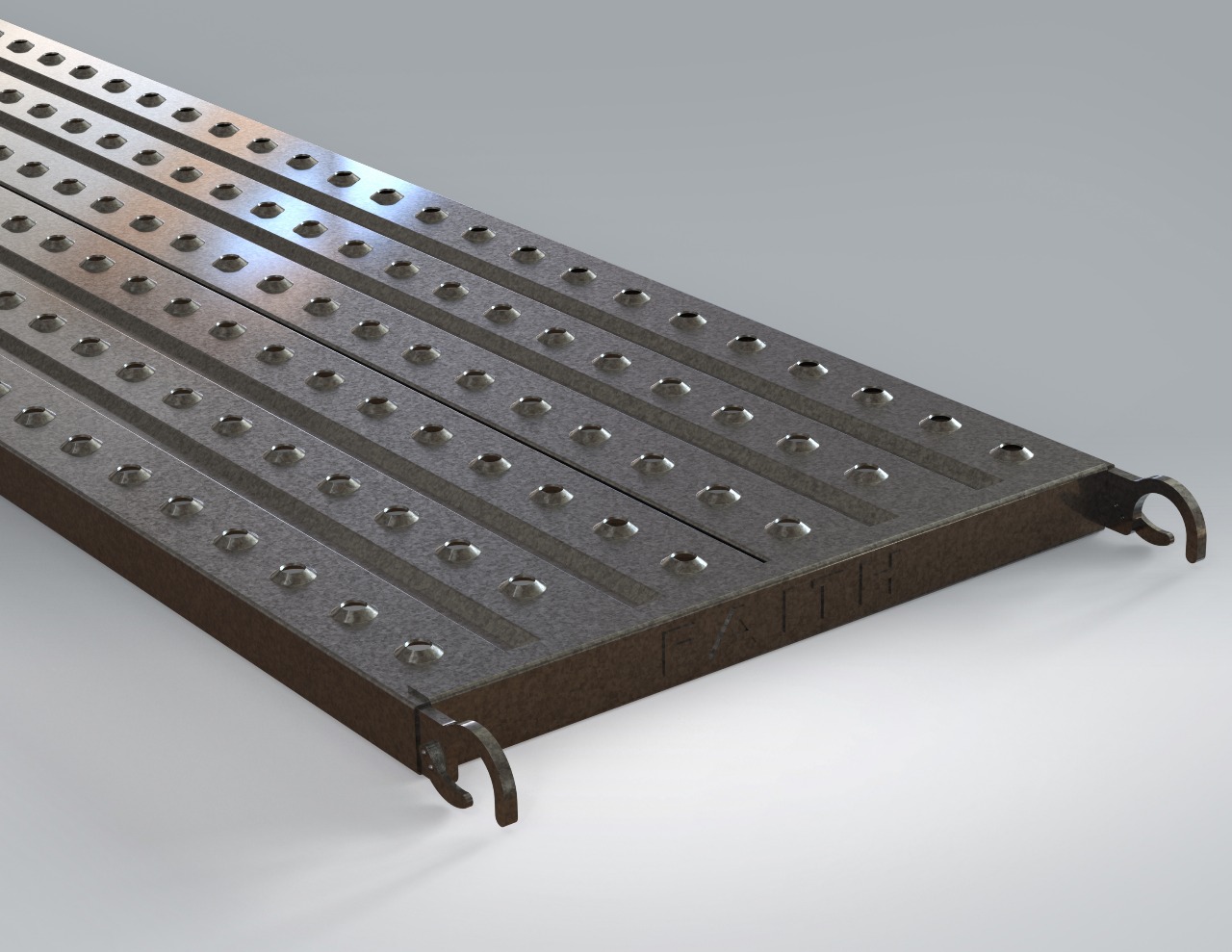

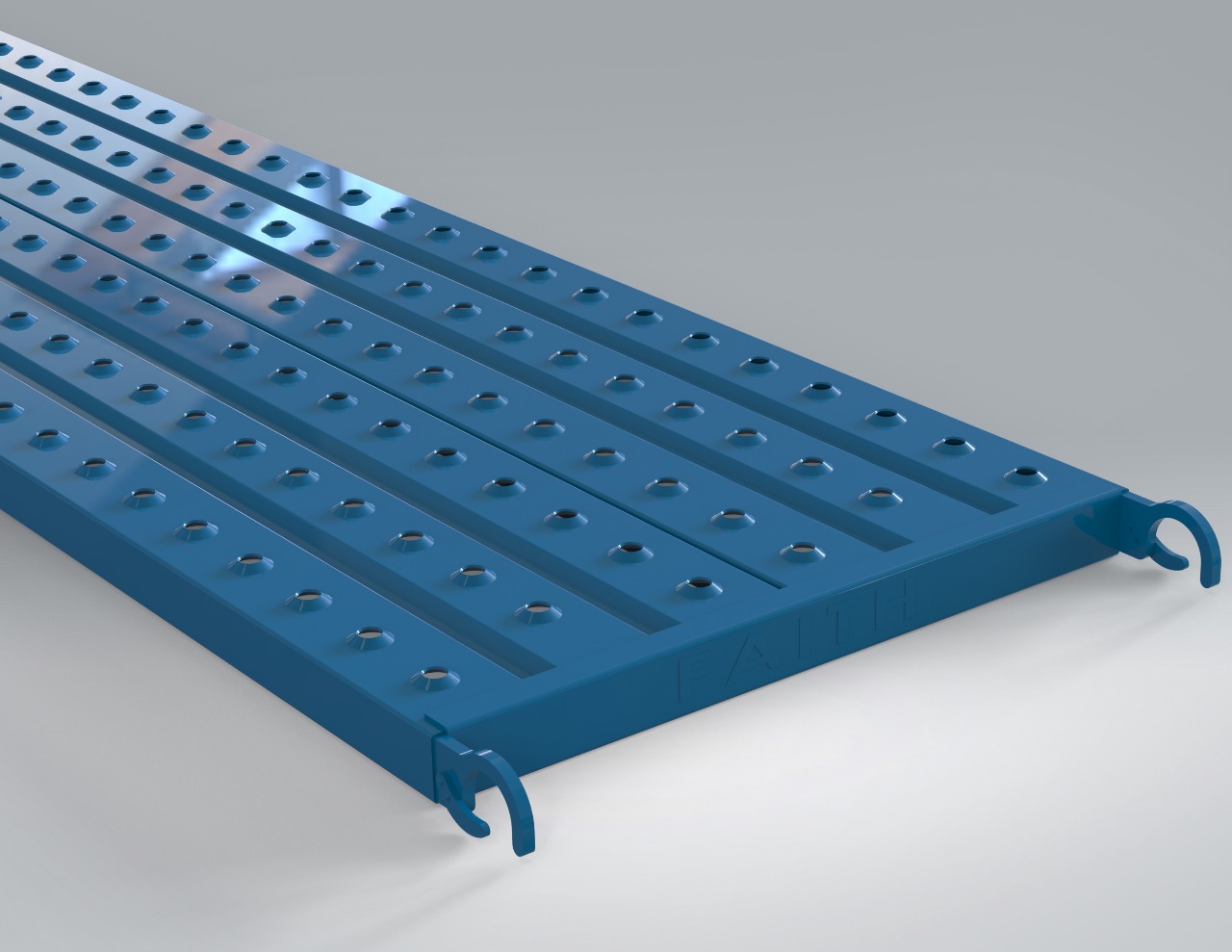

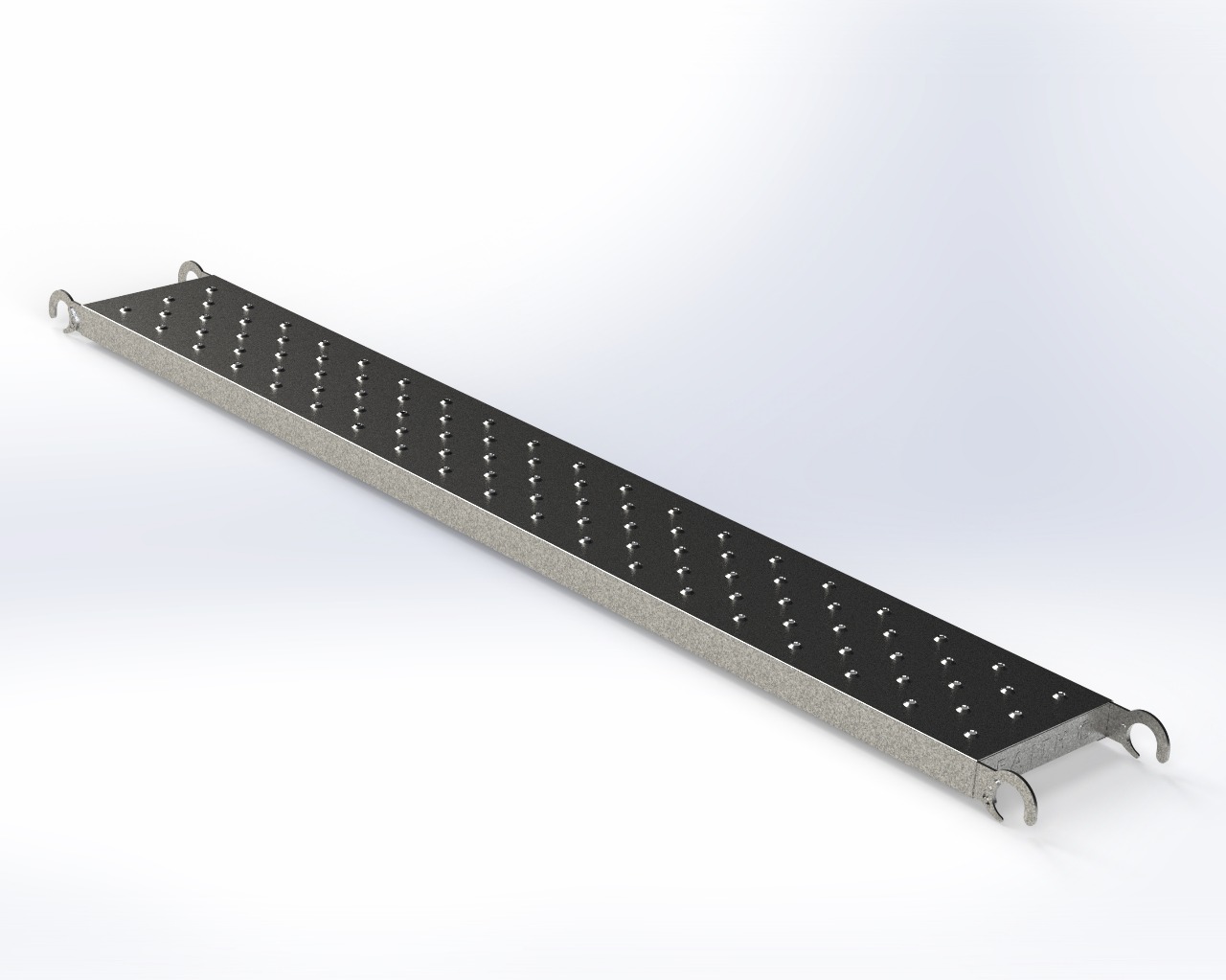

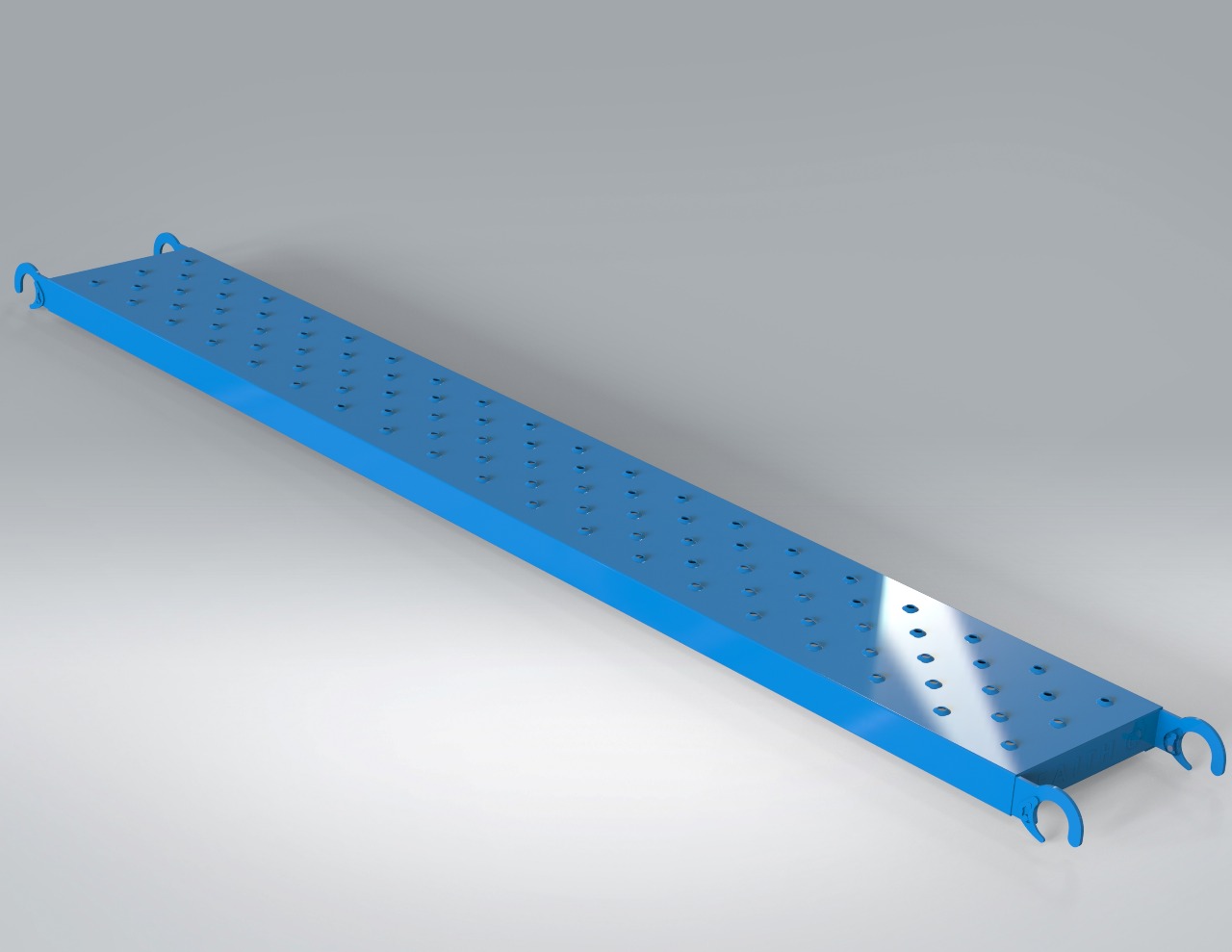

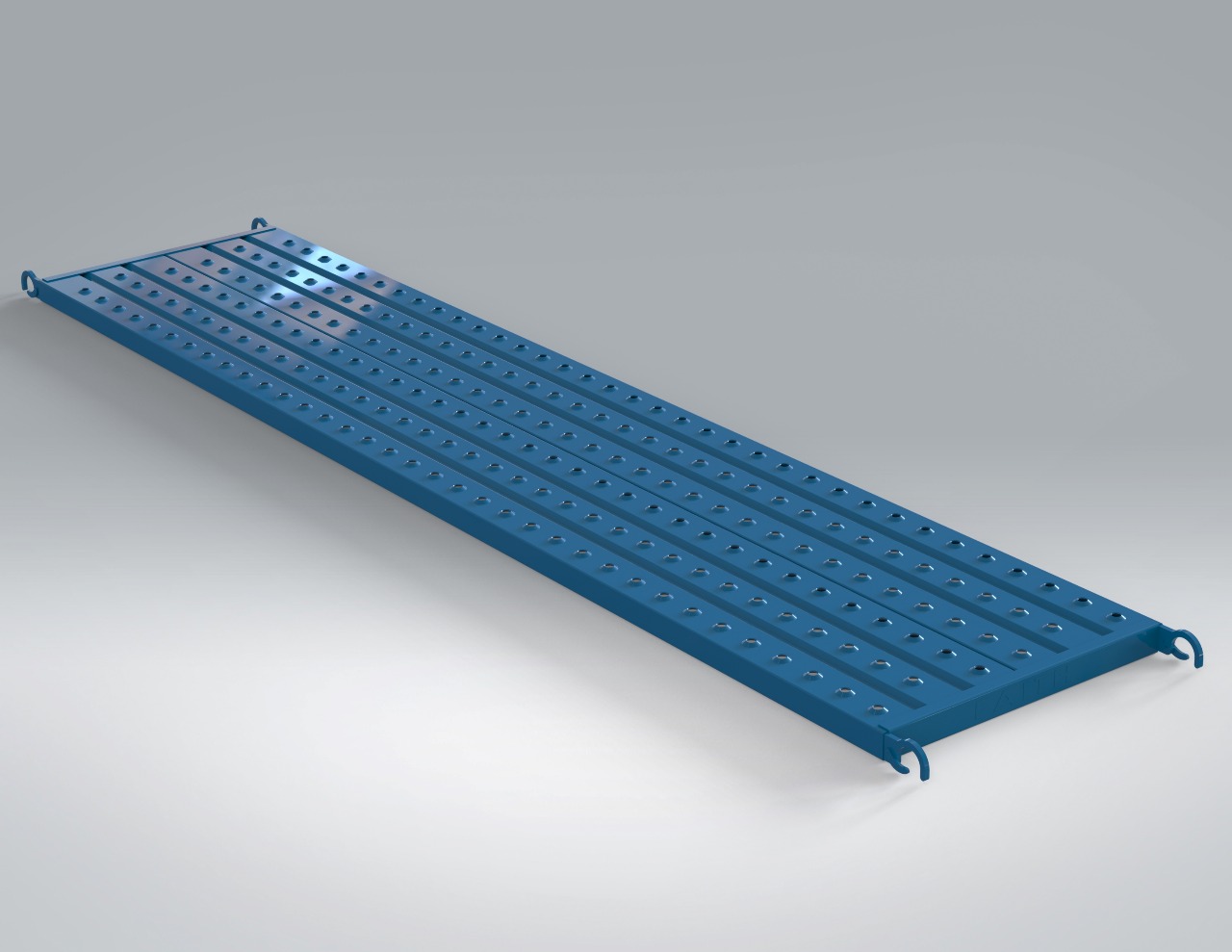

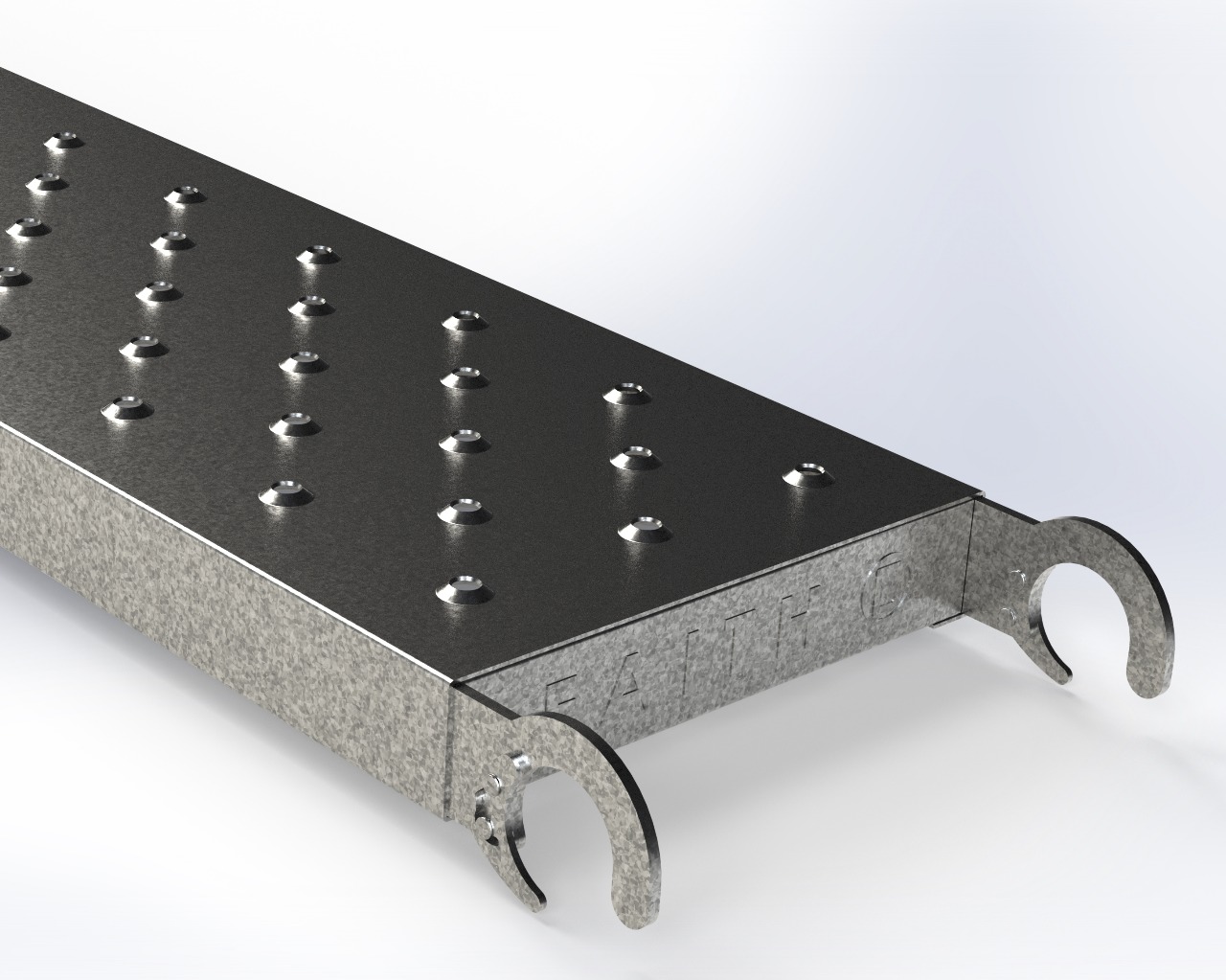

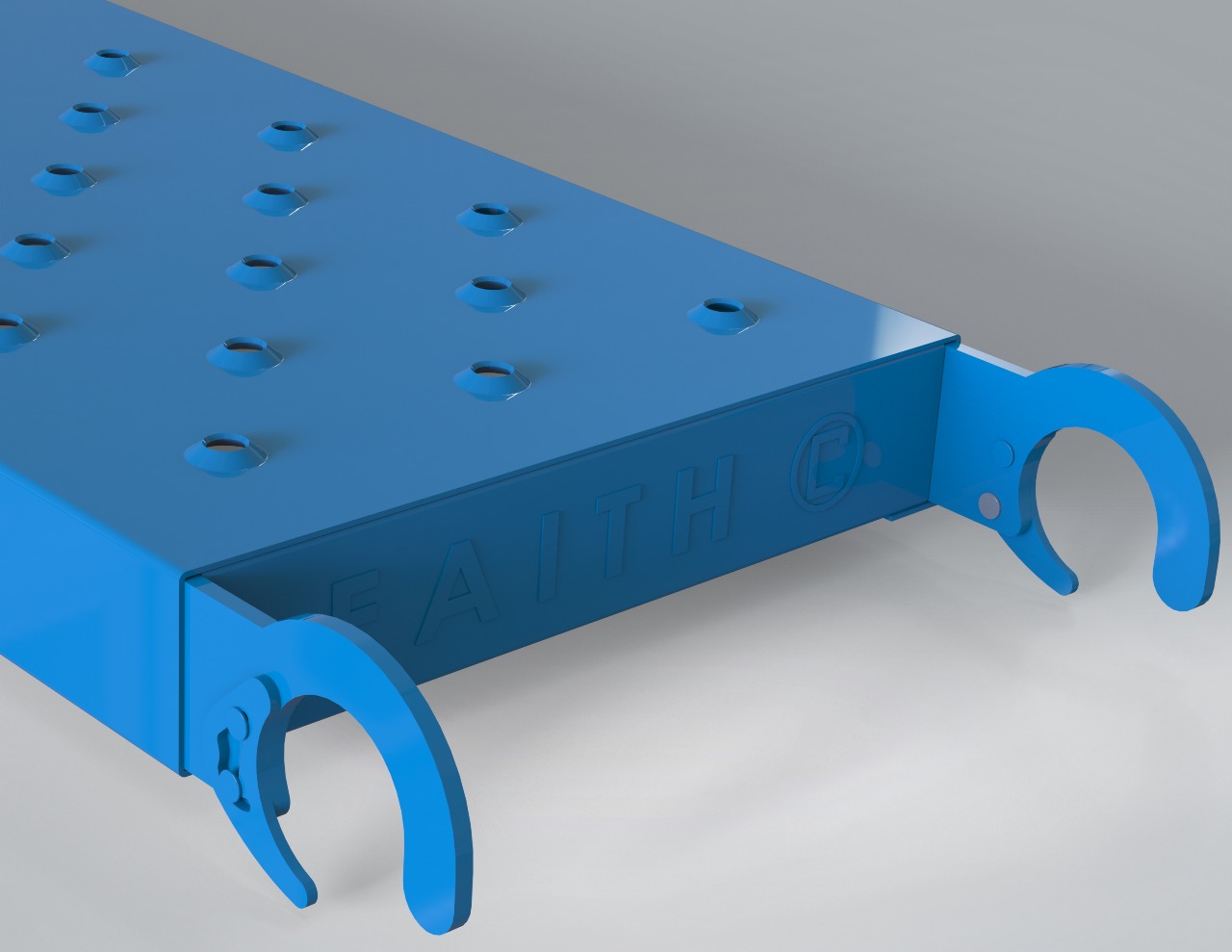

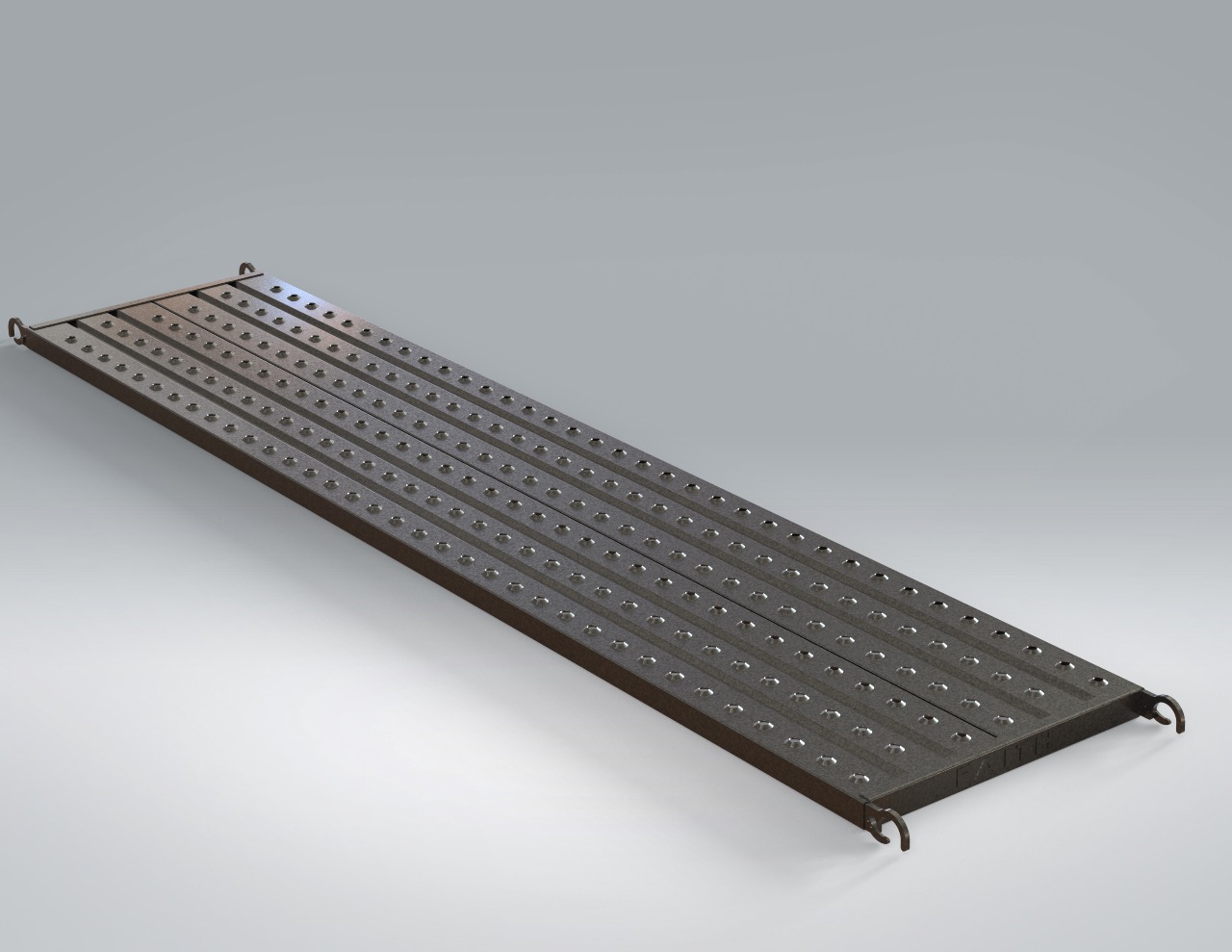

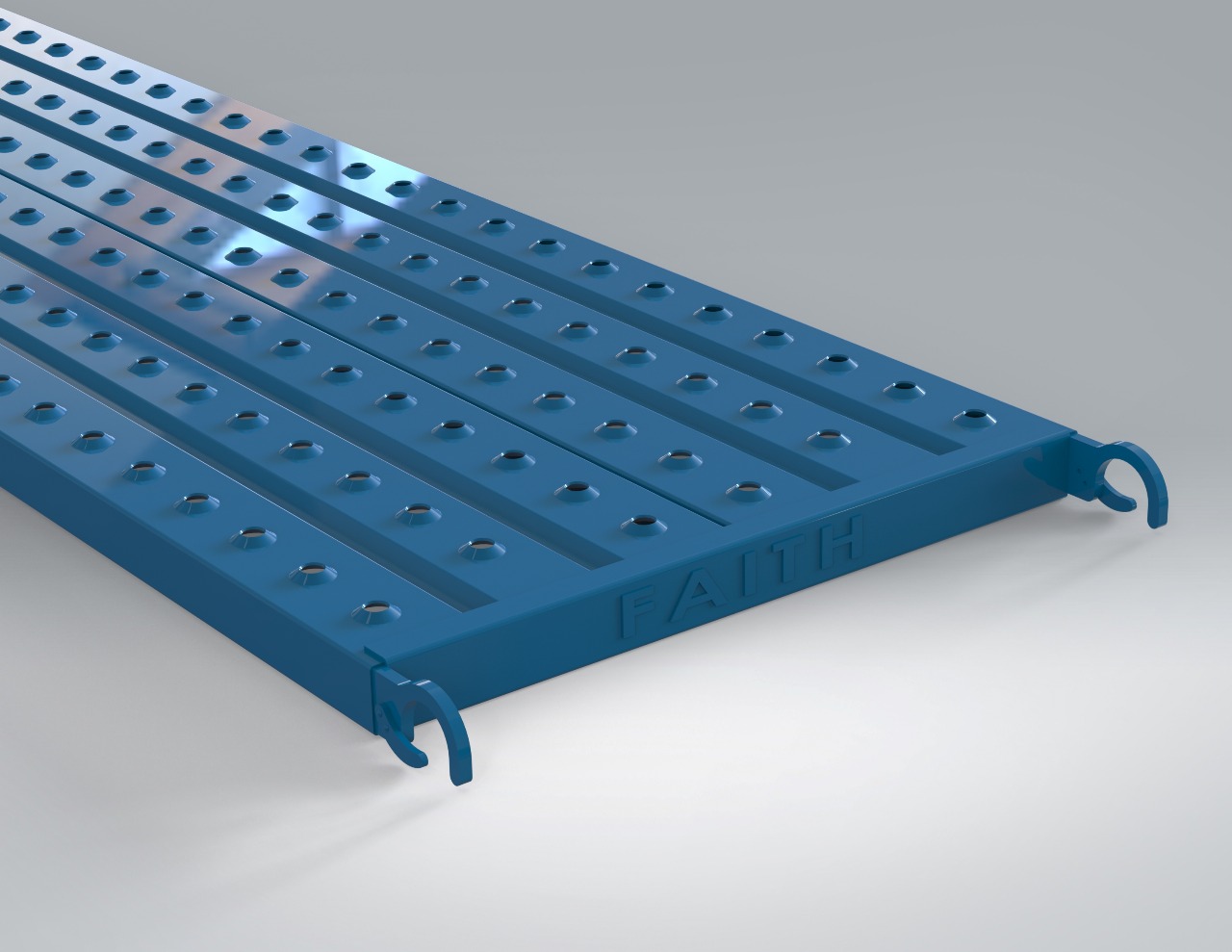

Engineered for maximum safety and unparalleled efficiency, the Anti-Skid Auto-Lock Hook Walkway Plank is the next evolution in temporary access solutions. This plank combines a superior anti-skid surface with an innovative, rapid-deployment auto-lock hook system, ensuring a reliable and secure platform for your crew.
| Parameter | Specification |
| Standard Widths | 225 mm, 230 mm, 250 mm, 280 mm, 300 mm, 400 mm |
| Standard Height | 38 mm to 55 mm |
| Standard Lengths | 500 mm to 3000 mm |
| Sheet Thickness | 1.6 mm, 1.8 mm, 2.0 mm |
| Load Capacity | Up to 250 kg UDL (Uniformly Distributed Load) |
| Surface Pattern | Rhombus 2.0 Non-Skid Pattern |
| Welding Type | CO? / MIG Welding as per IS Standards |
| Material | Mild Steel IS 2062 : E250 / Pre-Galvanized IS 277 |
| Surface Finish | Painted / Pre-Galvanized / Hot Dip Galvanized |
| Corrosion Protection | Up to 15-year coating life (Hot Dip Galvanized) |
| Manufacturing Standard | IS 1079 / BS EN 12811 |
| Category | Details |
| Material of Construction | Mild Steel IS 2062 : E250 / Pre-Galvanized IS 277 |
| Surface Finish | Painted / Pre-Galvanized / Hot Dip Galvanized |
| Corrosion Protection | Up to 15-year coating life (Hot Dip Galvanized) |
| Manufacturing Standard | IS 1079 / BS EN 12811 |
| Feature | Benefit |
| Rhombus 2.0 Anti-Skid Surface | Prevents slipping even on wet, oily, or dusty surfaces, enhancing worker safety. |
| Multiple Hook Designs | Available in Dog-Ear, Autolock, L&T, C-Type, and Without Hook options for flexible applications. |
| Lightweight Yet Robust | Easy to handle and install without compromising load-bearing strength. |
| High Corrosion Resistance | Hot Dip Galvanized finish ensures long life and durability in harsh conditions. |
| Reusable & Cost-Effective | Designed for multiple reuses, reducing replacement and maintenance costs. |
| Precision Laser Cutting | Ensures perfect alignment and easy assembly with modular scaffolding systems. |
| Customizable Sizes | Available in different lengths, widths, and hook types as per project requirements. |
| Application Area | Details |
| Construction Scaffolding Platforms | Used as safe walkways and working platforms for building and infrastructure projects. |
| Industrial Maintenance Platforms | Provides stable access for plant maintenance, fabrication, and inspection activities. |
| Power Plants & Refineries | Ideal for maintenance walkways and elevated working areas in energy sectors. |
| Event Staging & Truss Platforms | Used for temporary stage setups, elevated seating, and safe audience walkways. |
| Shipyards & Offshore Projects | Ensures non-slip access paths and work decks in marine and offshore environments. |
| Bridges & Flyovers | Supports workers during inspection, painting, and repair works at height. |
