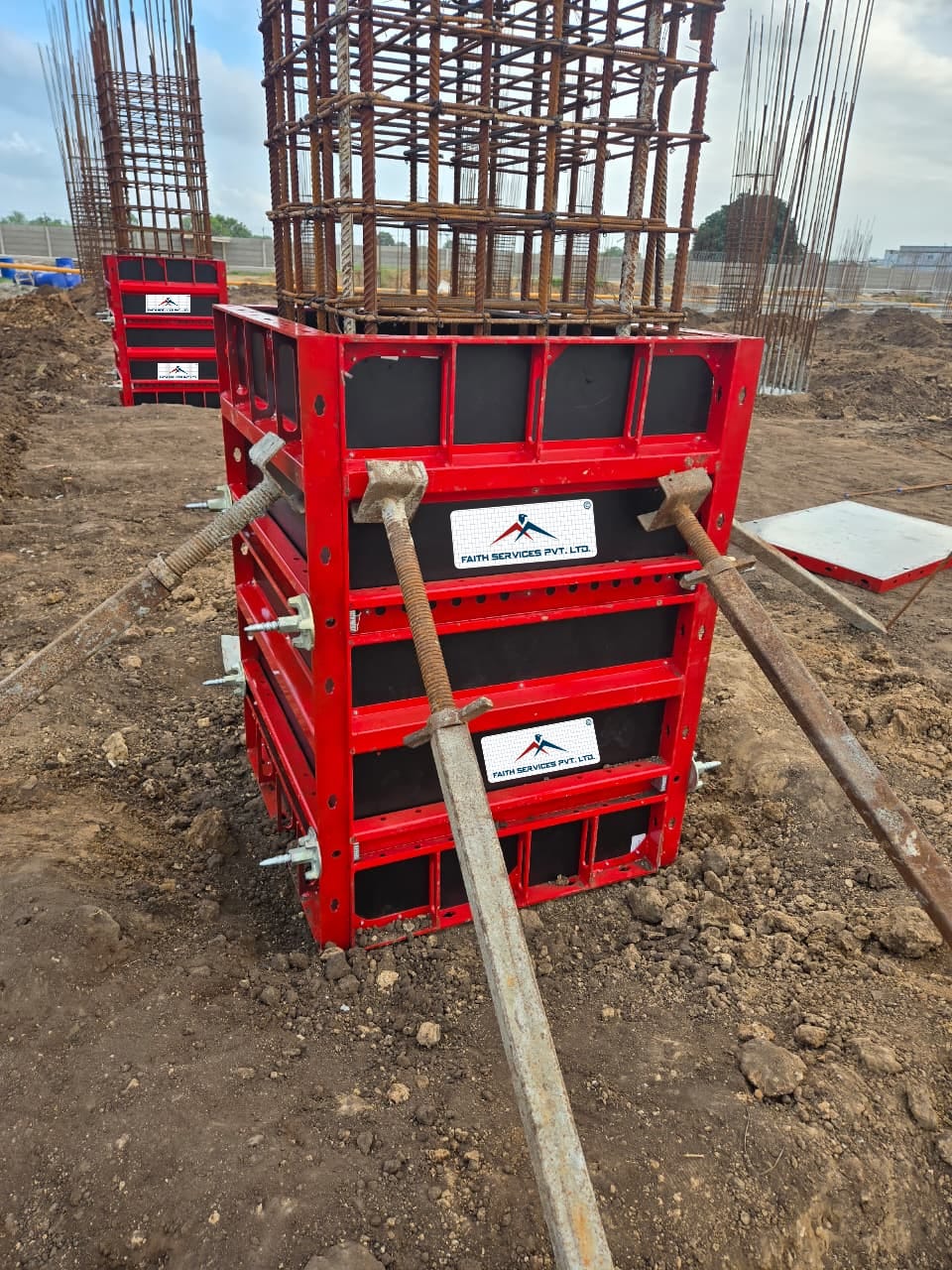

Medium Column formwork systems are typically made from high-strength Mild Steel (MS), which offers a balanced combination of durability, flexibility, and load-bearing capacity. These formworks are designed to support concrete structures during the curing process, ensuring stability and preventing deformation under load. The material choice of Mild Steel provides excellent tensile strength and resilience, enabling the formwork to withstand substantial pressures without compromising the shape or alignment of the column. The medium formwork system is versatile, lightweight enough for ease of handling, yet strong enough to handle medium load applications across a variety of column dimensions.
Download BrochureExplore our latest videos and updates

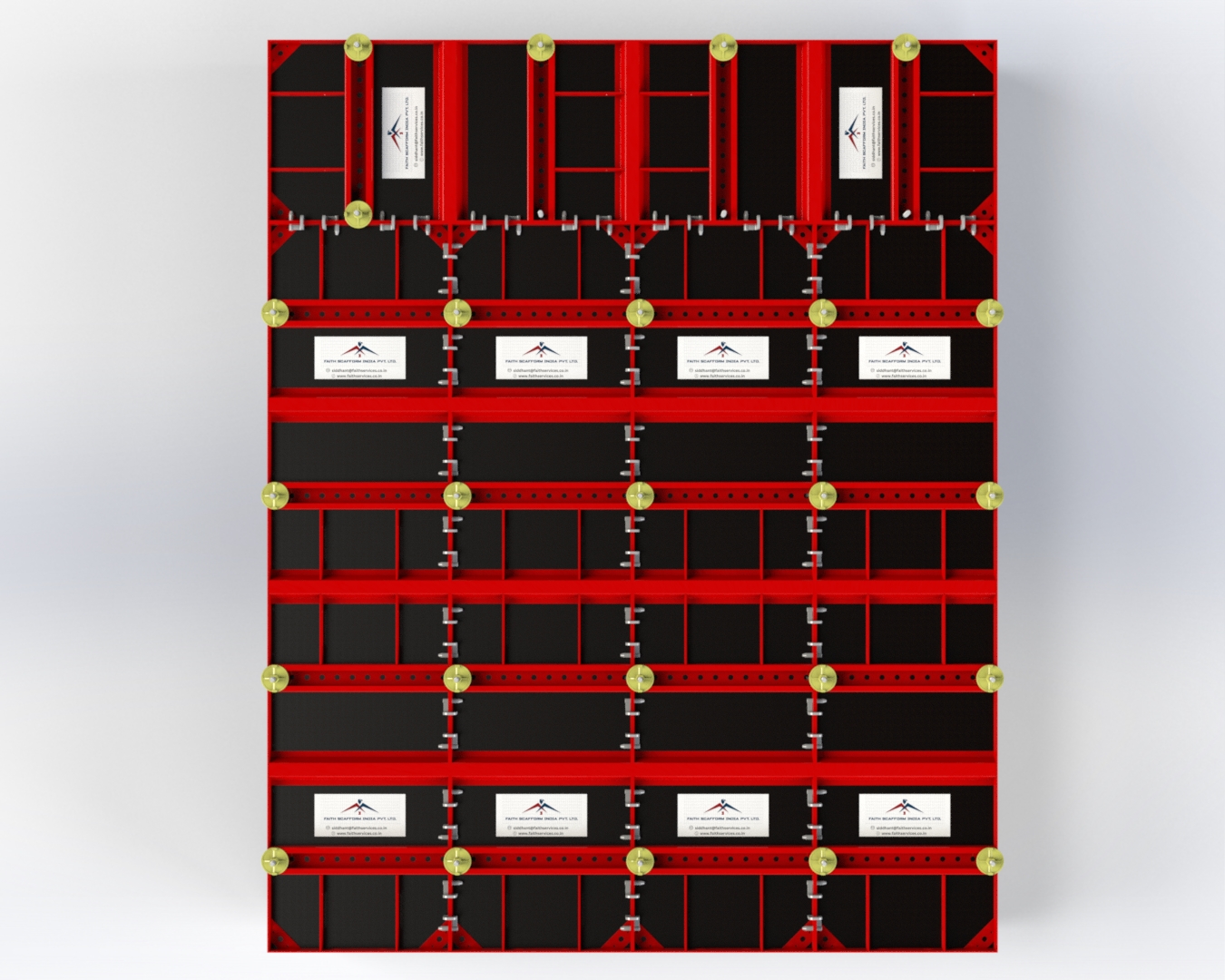

Wall Form work
| Model | Panel Thickness | Flat Stiffener | Load Capacity | Application |
| ECO Panel | 2.0 mm | 60×6 mm | 40 kN/m² | Residential and light construction |

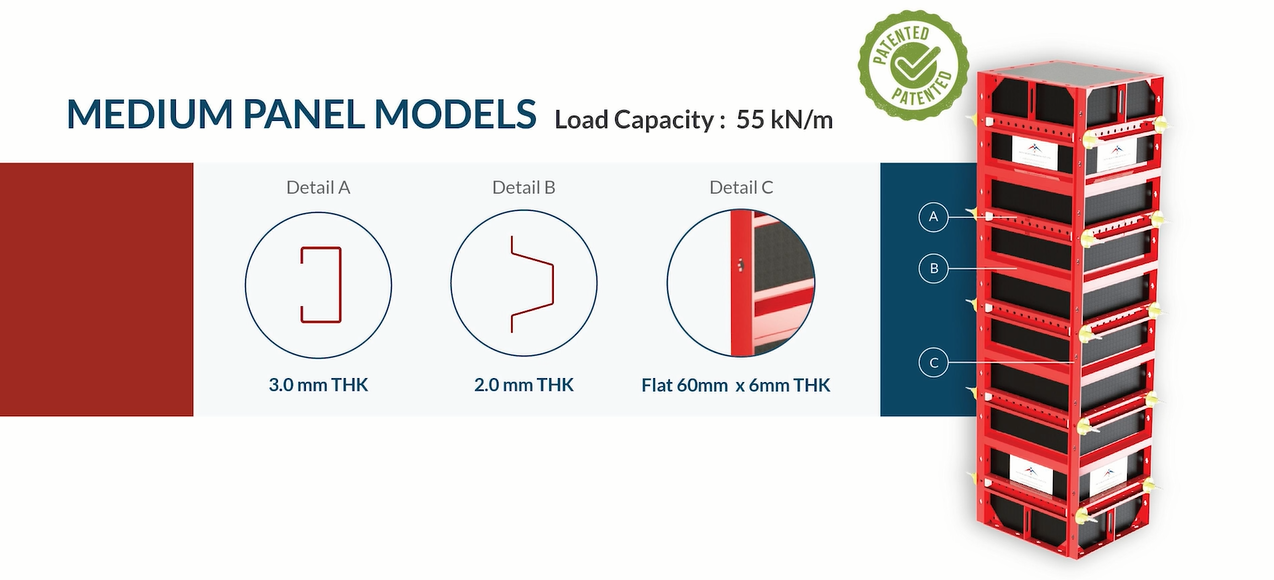

| MEDIUM Panel | 2.0 mm | 60×6 mm | 55 kN/m² | General building & commercial |
| HEAVY Panel | 3.0 mm | 68×6 mm | 75 kN/m² | Infrastructure & high-rise projects |
Material: High-quality mild steel
Finish: Red oxide painted / Powder coated / Hot dip galvanized
Joint Types: T-Junctions, Wall Offsets, 90° Corners
Standards: IS 2750 / BS 5975 compliant
High-precision modular design for quick assembly
Reinforced flat stiffeners ensure superior panel strength
Compatible with wall, column, and slab formwork systems
Smooth concrete finish minimizes plastering needs
Reusable, durable, and corrosion-resistant
Can form T-junctions, corners, and wall offsets easily
Available in multiple load capacity variants
RCC walls and shear walls
Foundations, tanks, and retaining walls
Columns and vertical structures
Bridges, flyovers, and infrastructure
Industrial and high-rise building construction
