Heavy Column formwork is engineered to meet the most demanding construction requirements. Made from a combination of high-quality Mild Steel (MS) and High-Strength Steel (HSS), these formwork systems provide exceptional load-bearing capacity, rigidity, and structural stability. The use of high-strength steel ensures that the formwork can withstand very high loads without any deformation, making it suitable for large-scale construction projects, tall columns, and heavy concrete pours.
Download BrochureExplore our latest videos and updates

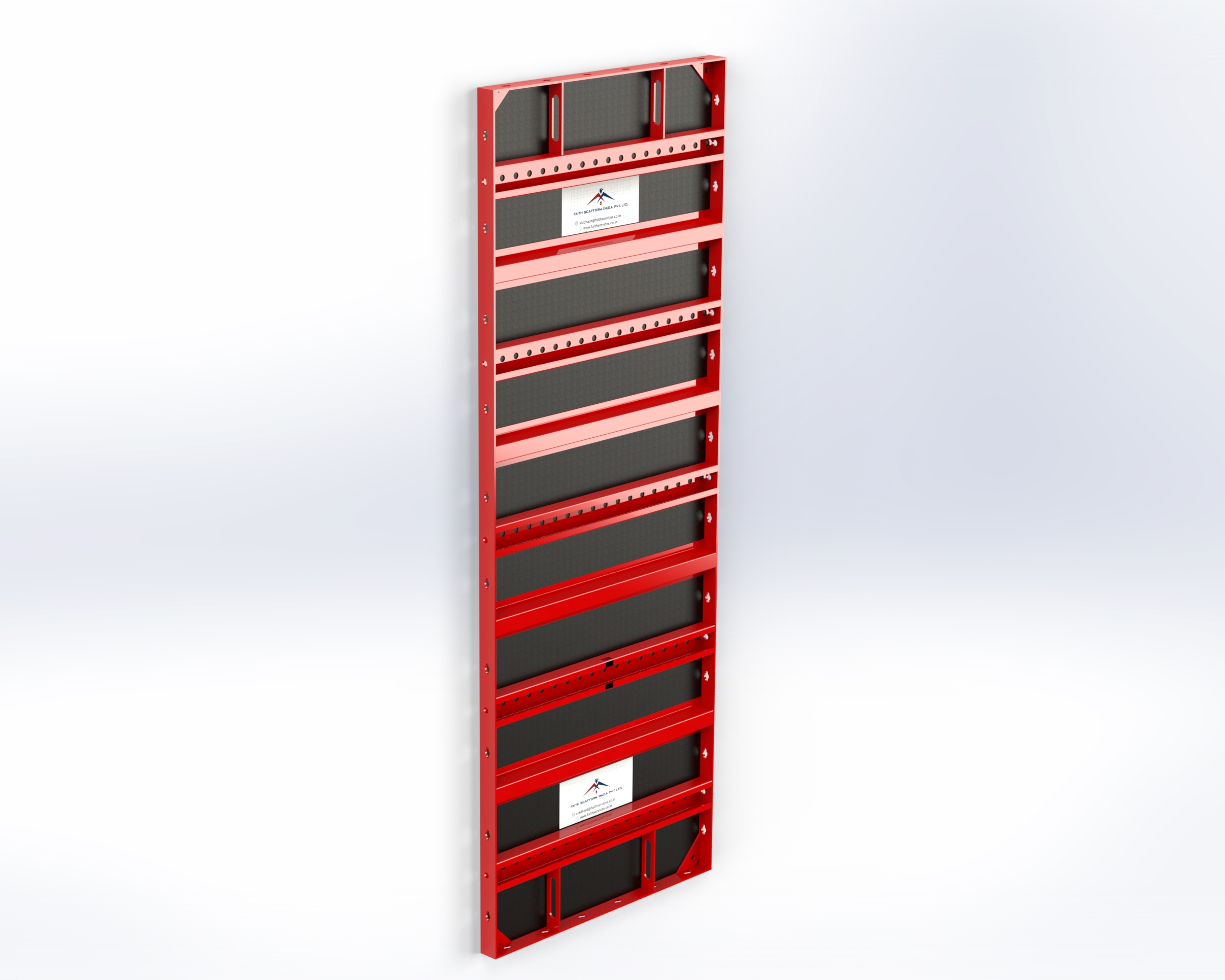

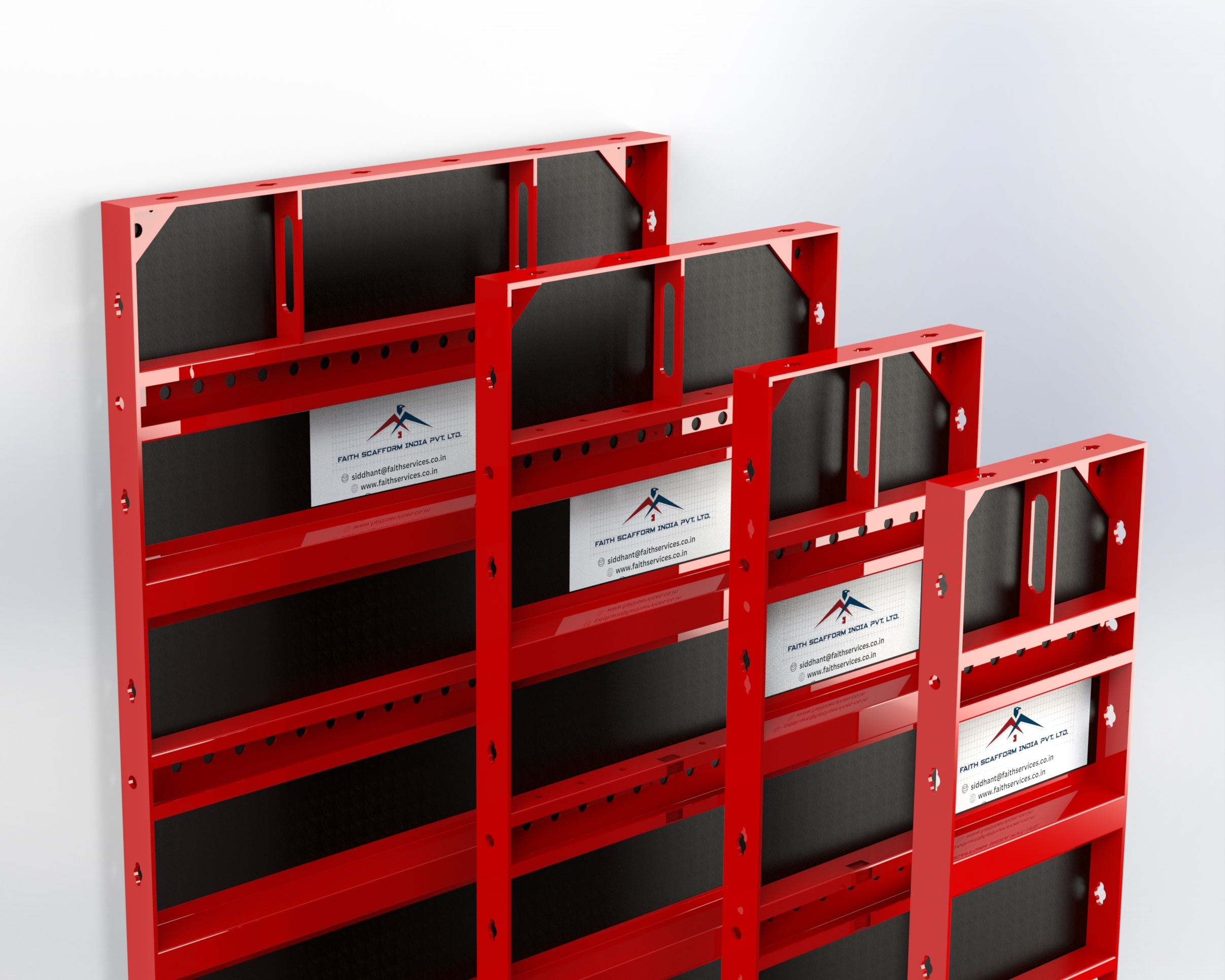

Panel IT
| Model | Panel Thickness | Flat Stiffener | Load Capacity | Application |
| ECO Panel | 2.0 mm | 60×6 mm | 40 kN/m² | Residential and light construction |
| MEDIUM Panel | 2.0 mm | 60×6 mm | 55 kN/m² | General building & commercial |

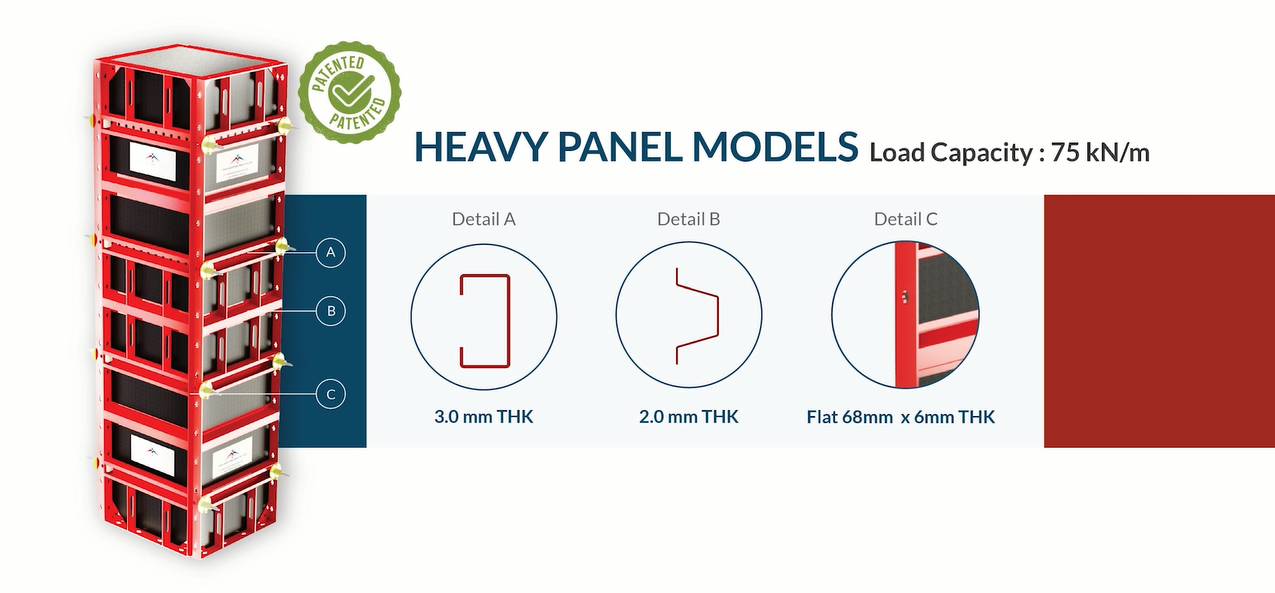

| HEAVY Panel | 3.0 mm | 68×6 mm | 75 kN/m² | Infrastructure & high-rise projects |
Material: High-quality mild steel
Finish: Red oxide painted / Powder coated / Hot dip galvanized
Joint Types: T-Junctions, Wall Offsets, 90° Corners
Standards: IS 2750 / BS 5975 compliant
High-precision modular design for quick assembly
Reinforced flat stiffeners ensure superior panel strength
Compatible with wall, column, and slab formwork systems
Smooth concrete finish minimizes plastering needs
Reusable, durable, and corrosion-resistant
Can form T-junctions, corners, and wall offsets easily
Available in multiple load capacity variants
.jpeg)

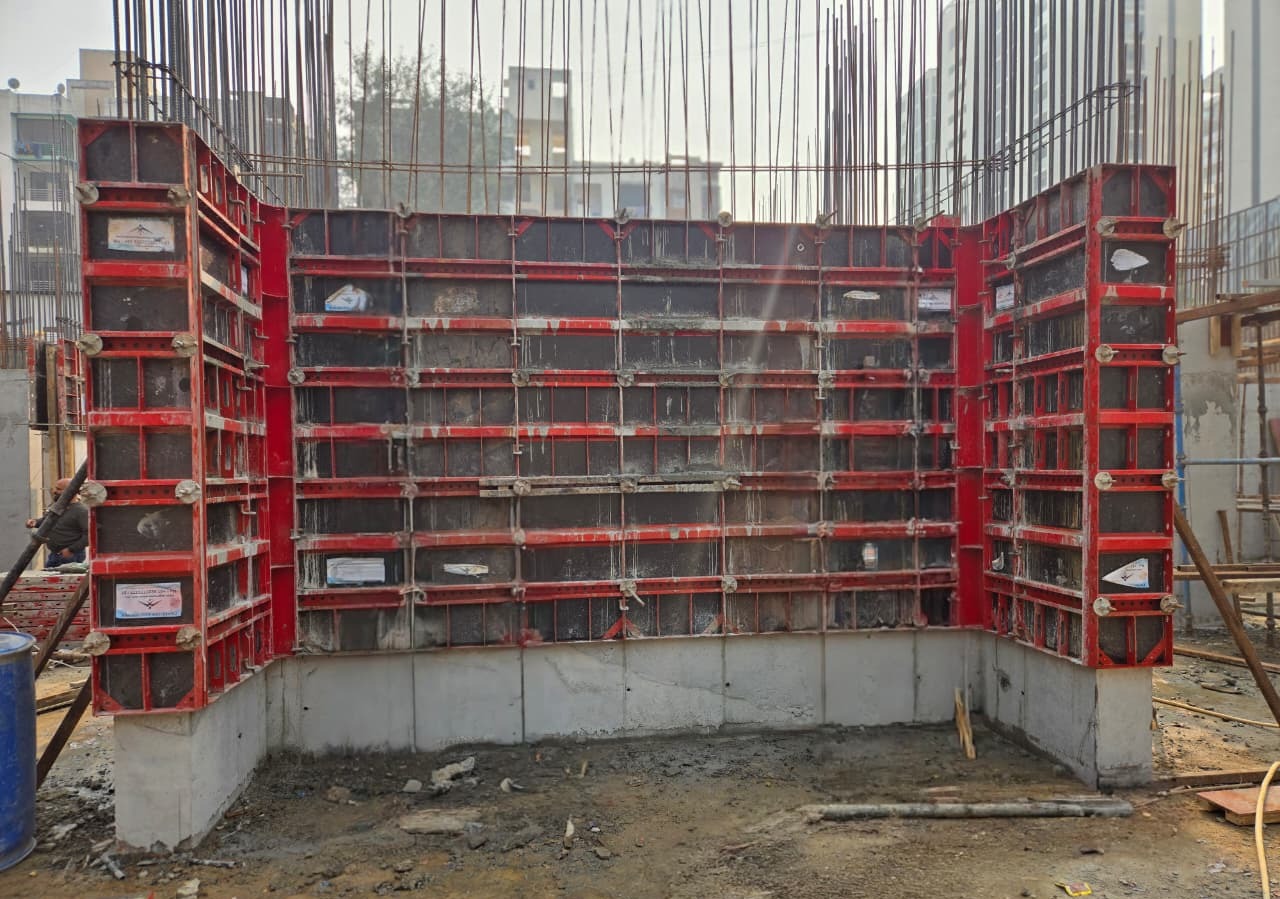

RCC walls and shear walls
Foundations, tanks, and retaining walls

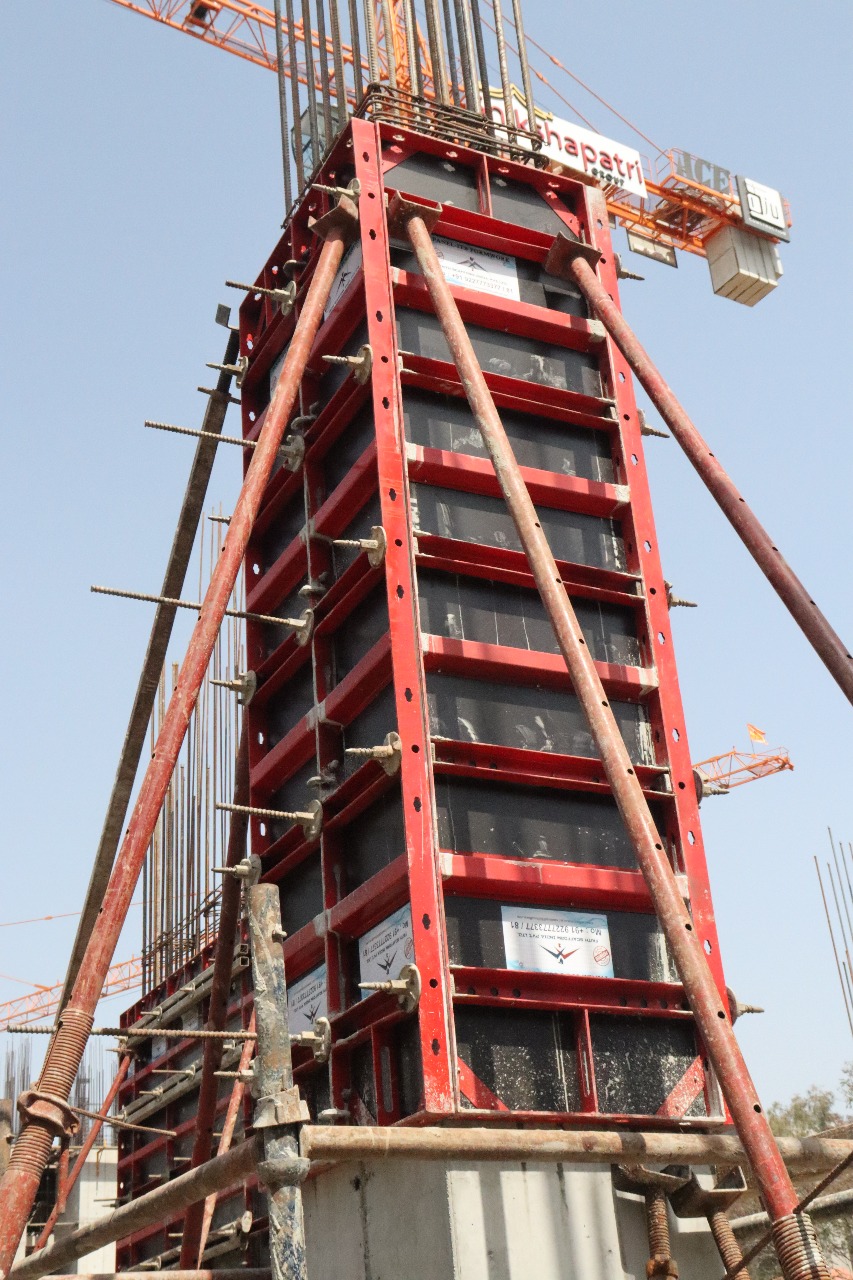

Columns and vertical structures
Bridges, flyovers, and infrastructure
Industrial and high-rise building construction
100% In-house design, fabrication, and quality testing
Decades of experience in scaffolding and formwork systems
On-site technical support and installation guidance
Certified products as per international safety standards
Integrated with our Rhombus 2.0 and Cuplock systems for total safety solutions
