ECO Column formwork is a versatile, reusable system designed to provide the necessary support and shaping for concrete during the curing process. Made primarily from high-quality Mild Steel (MS), the ECO Panel offers outstanding durability, flexibility, and resistance to wear and tear, making it ideal for repeated use in construction projects. The ECO Panel formwork system is engineered for efficiency and ease of use, with panels that are lightweight yet strong enough to withstand substantial loads without losing their shape or alignment. This ensures that the formwork remains intact during the curing period, providing the required structural stability.
Download BrochureExplore our latest videos and updates

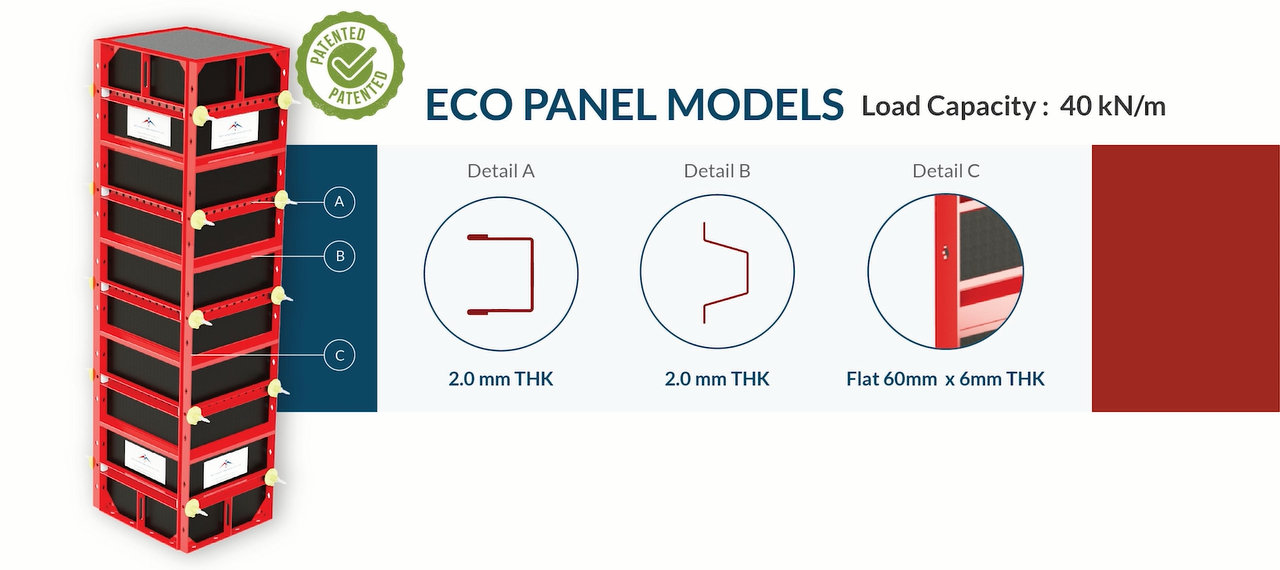

Panel IT
| Model | Panel Thickness | Flat Stiffener | Load Capacity | Application |
| ECO Panel | 2.0 mm | 60×6 mm | 40 kN/m² | Residential and light construction |
| MEDIUM Panel | 2.0 mm | 60×6 mm | 55 kN/m² | General building & commercial |
| HEAVY Panel | 3.0 mm | 68×6 mm | 75 kN/m² | Infrastructure & high-rise projects |
Material: High-quality mild steel
Finish: Red oxide painted / Powder coated / Hot dip galvanized
Joint Types: T-Junctions, Wall Offsets, 90° Corners
Standards: IS 2750 / BS 5975 compliant
High-precision modular design for quick assembly
Reinforced flat stiffeners ensure superior panel strength
Compatible with wall, column, and slab formwork systems
Smooth concrete finish minimizes plastering needs
Reusable, durable, and corrosion-resistant
Can form T-junctions, corners, and wall offsets easily
Available in multiple load capacity variants
RCC walls and shear walls
Foundations, tanks, and retaining walls
Columns and vertical structures
Bridges, flyovers, and infrastructure
Industrial and high-rise building construction
100% In-house design, fabrication, and quality testing
Decades of experience in scaffolding and formwork systems
On-site technical support and installation guidance
Certified products as per international safety standards
Integrated with our Rhombus 2.0 and Cuplock systems for total safety solutions
