The U Head Jack is an essential scaffolding component used for supporting beams, formwork, and slabs during concrete casting. It provides precise height adjustment and load distribution at the top of scaffolding structures, ensuring maximum stability and safety during construction.
Manufactured by Faith Service Pvt. Ltd. using high-grade Mild Steel (MS) or Carbon Steel, each U Head Jack is designed to deliver reliable performance under heavy loads and challenging site conditions.
At Faith Service Pvt. Ltd., each U Head Jack undergoes precision machining and welding as per international standards, ensuring unmatched durability, safety, and performance on construction sites.

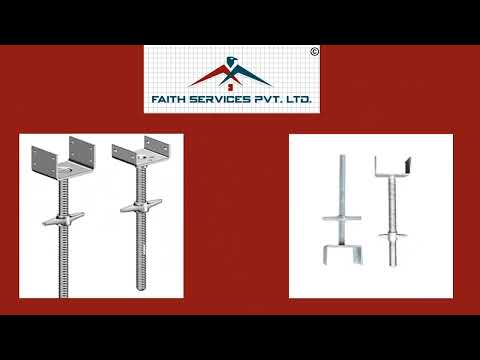

Explore our latest videos and updates

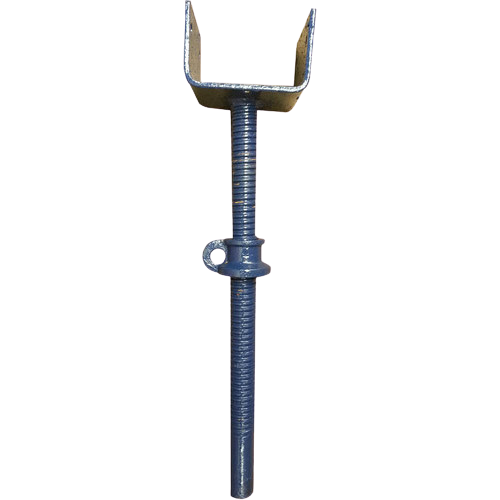

U Head Jack
| Product Name | U Head Jack |
|---|---|
| Material | Mild Steel (MS) / Carbon Steel |
| Tube Diameter (Before Threading) | 28 mm / 30 mm |
| Tube Diameter (After Threading) | 30 mm (for 28 mm pipe) / 32 mm (for 30 mm pipe) |
| Thread Type | ACME / Rolled Thread |
| Thread Length | 400 mm – 600 mm (as per requirement) |
| U Head Size | 100 mm × 100 mm / 120 mm × 120 mm / 150 mm × 150 mm |
| U Head Depth | 50 mm – 75 mm |
| Adjustable Height | Up to 450 mm (Standard) / 600 mm (Heavy Duty) |
| Total Length | 450 mm to 700 mm |
| Finish | Hot Dip Galvanized / Electro Galvanized / Red Oxide Painted |
| Weight | Approx. 3.5 kg – 5.5 kg (depending on U size and length) |
| Load Bearing Capacity | 3 – 6 Ton (depending on pipe size and material strength) |
| Welding | CO? / MIG Welding as per IS Standards |
| Standard Followed | IS 2750 / BS 1139 (or equivalent) |
| Usage | Used at the top of scaffolding to hold and support beams or formwork systems |
| Optional | With or Without Handle / Nut (Wing Nut or Cup Nut Type) |
