Cuplock Scaffolding

CUPLOCK SCAFFOLDING SYSTEM: Build Smarter, Faster, Safer. The Cuplock system is a globally trusted, multi-purpose modular scaffolding solution known for its speed and strength.<!----> Its core innovation is the unique Cup-and-Blade Locking Mechanism, which allows up to four horizontal components to be secured to the vertical standard with a single hammer strike—eliminating the need for loose fittings, bolts, and wedges. This delivers rapid assembly/dismantling and creates an exceptionally rigid, high-load-bearing structure.<!----> Versatile, standardized, and low-maintenance, Cuplock is the ideal choice for high-rise projects, industrial maintenance, and heavy shoring applications.

Download Brochure

Our Videos

Explore our latest videos and updates

Cuplock Scaffolding

Technical Specifications

Technical Specifications

  • Material: High-grade Mild Steel (MS) / Galvanized Steel

  • Vertical Standards: 1.0 m – 3.0 m (as required)

  • Ledgers: 0.6 m – 2.5 m

  • Cup Joints: Forged top and bottom cups (as per BS 1139 / IS 2750)

  • Finish: Hot-dip galvanized / painted / electro-galvanized

  • Load Capacity: Up to 6 tons per bay

Features & Benefits

  • Fast installation using simple locking cups

  • High load-bearing strength with minimum loose parts

  • Uniform spacing ensures safety and balance

  • Corrosion-resistant finish for long service life

  • Compatible with U Head Jack, Base Jack & Rhombus 2.0 Planks

Features & Benefits
Applications / Usage Areas

Applications / Usage Areas

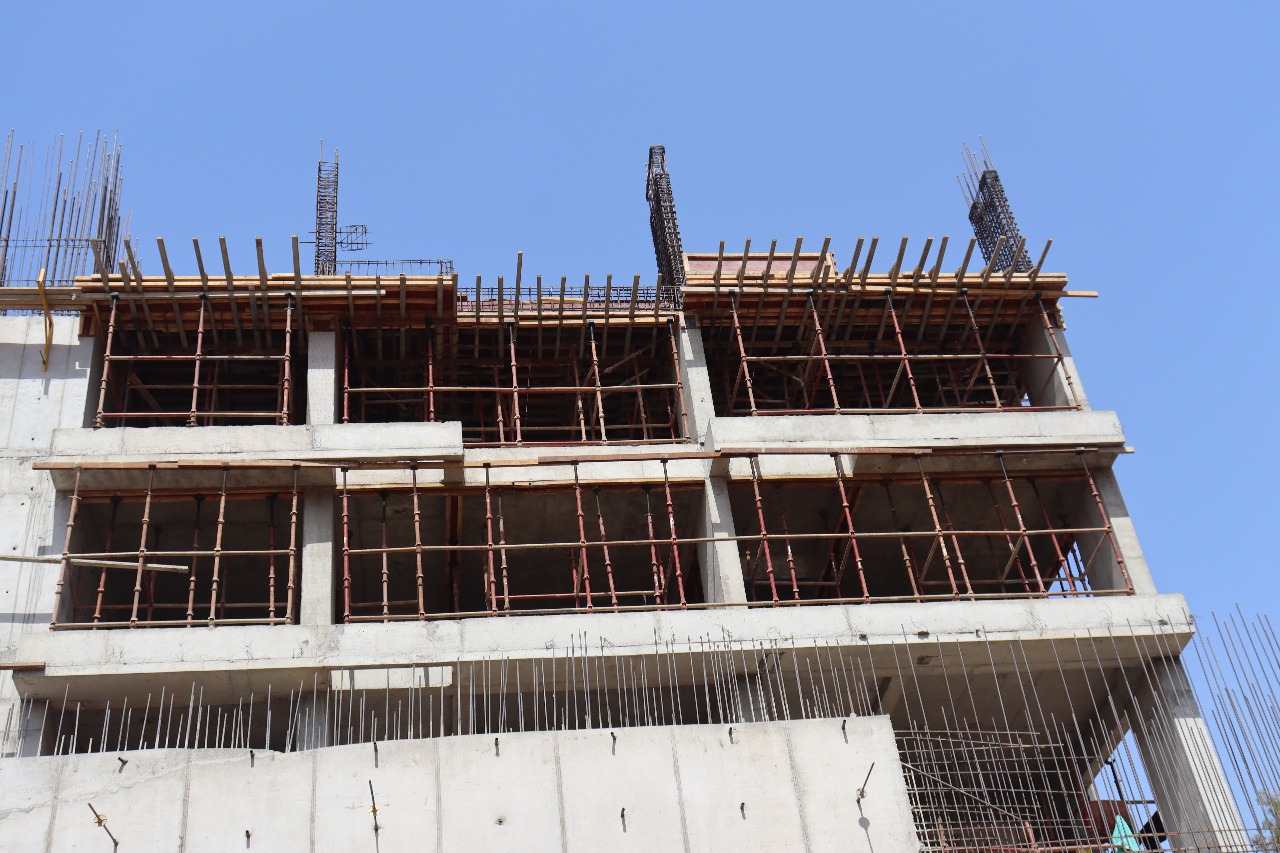

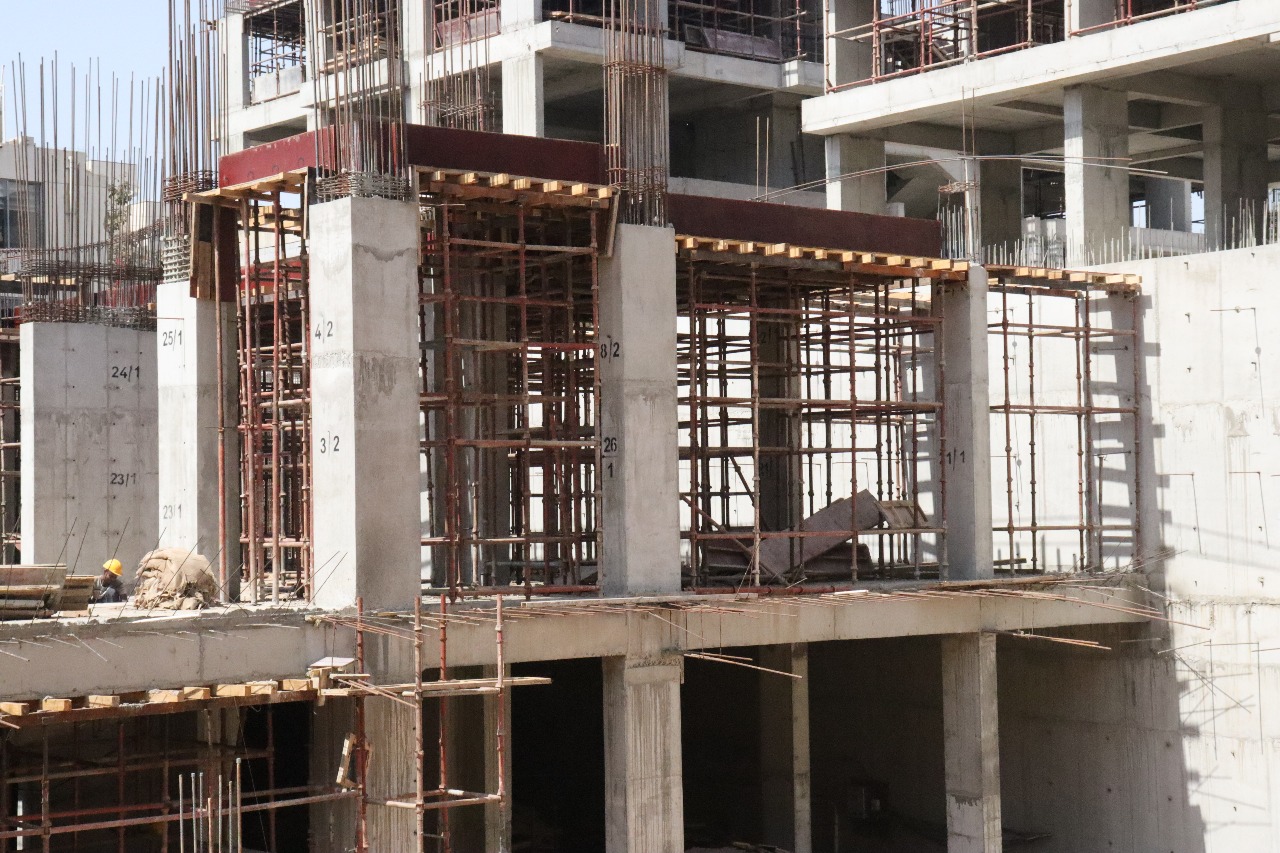

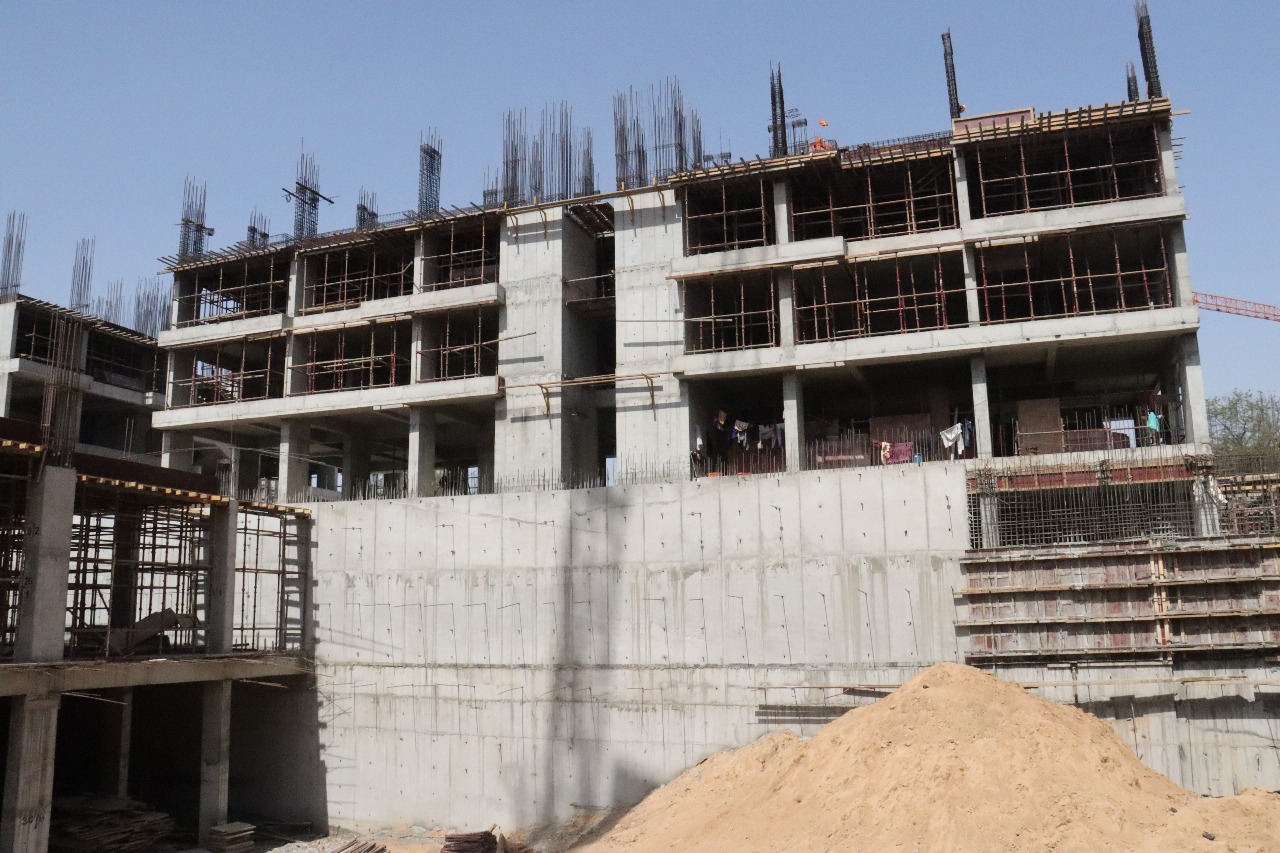

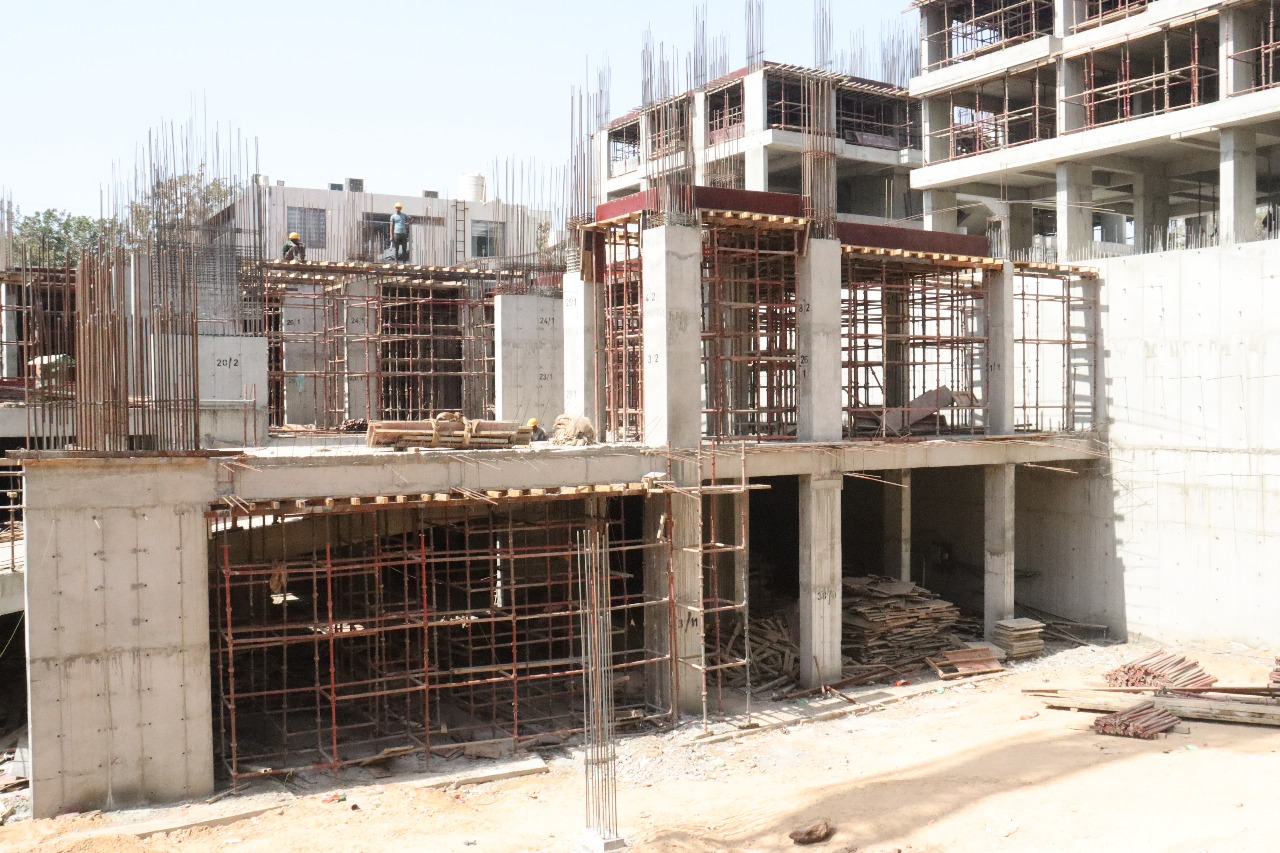

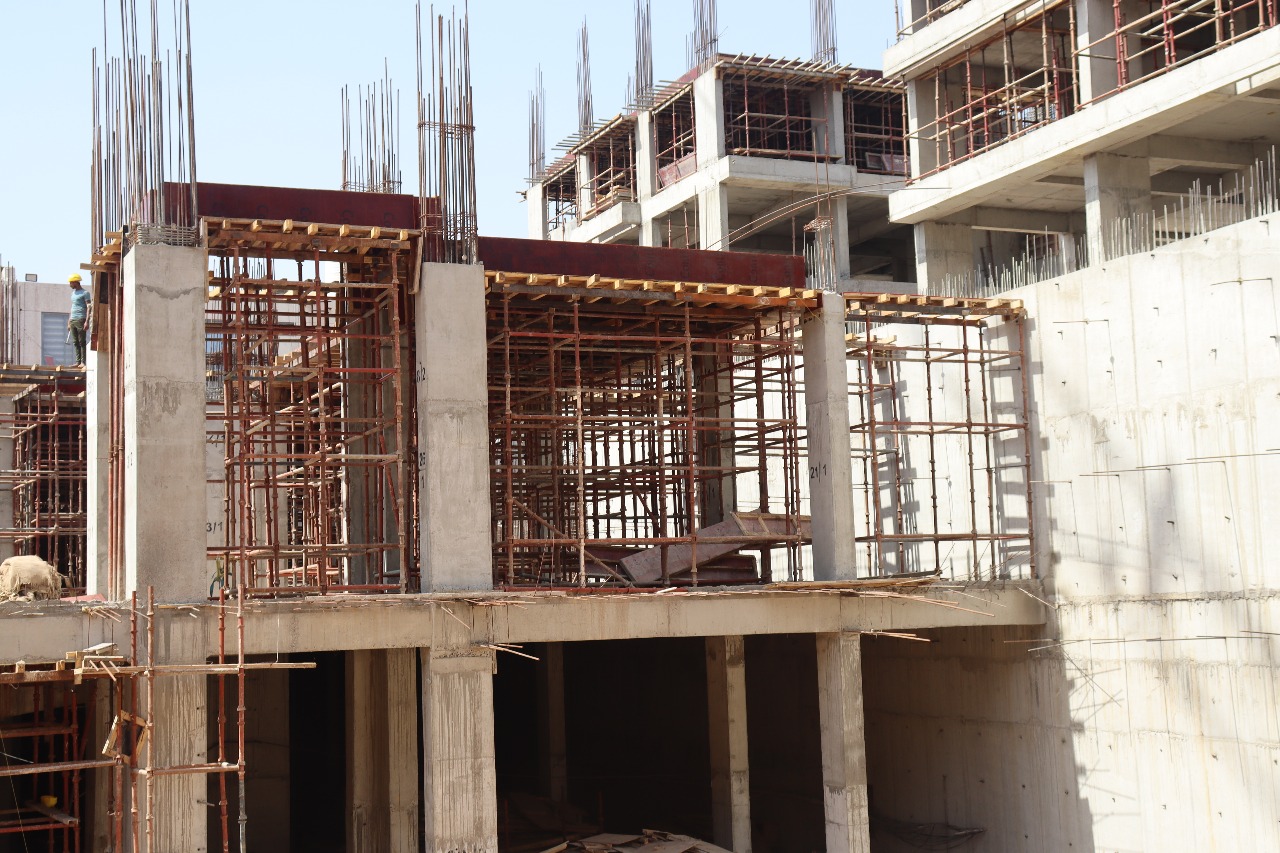

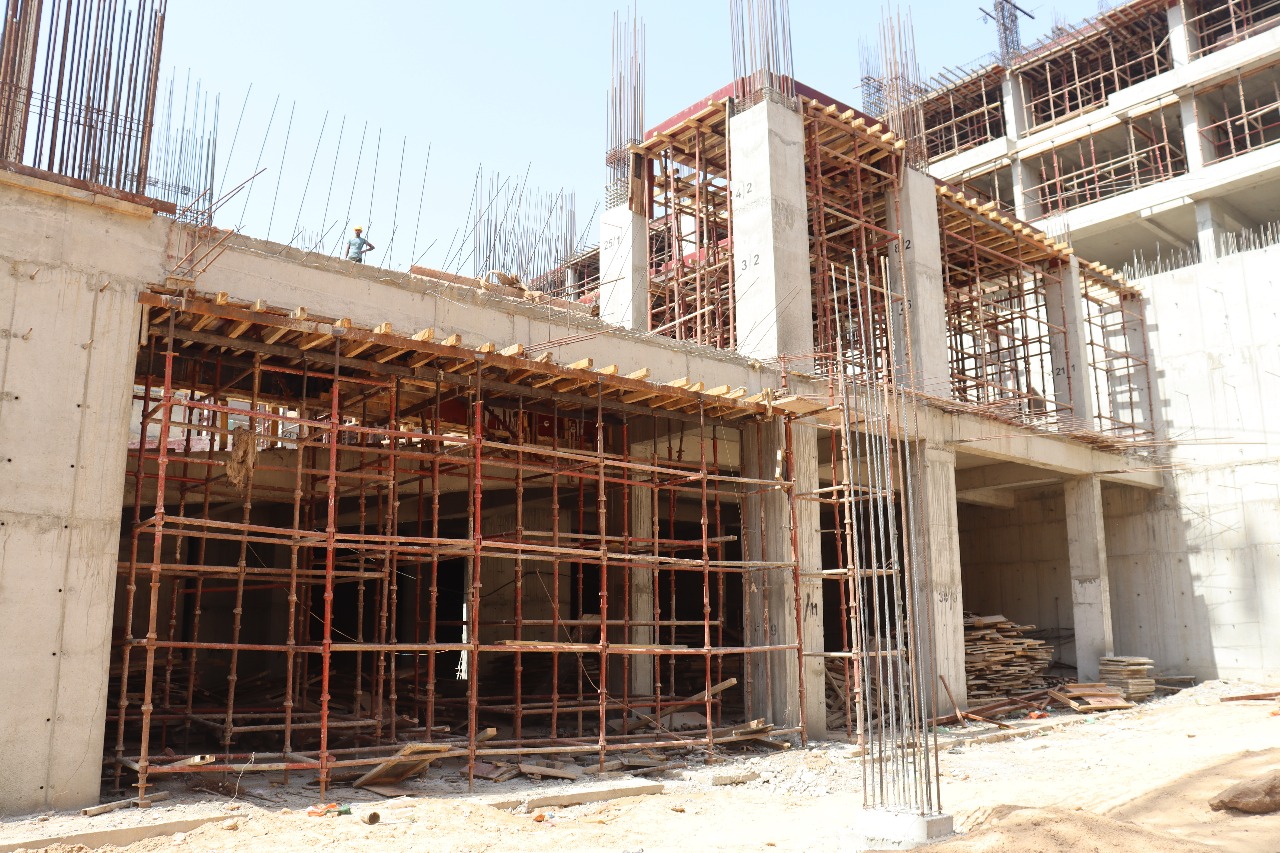

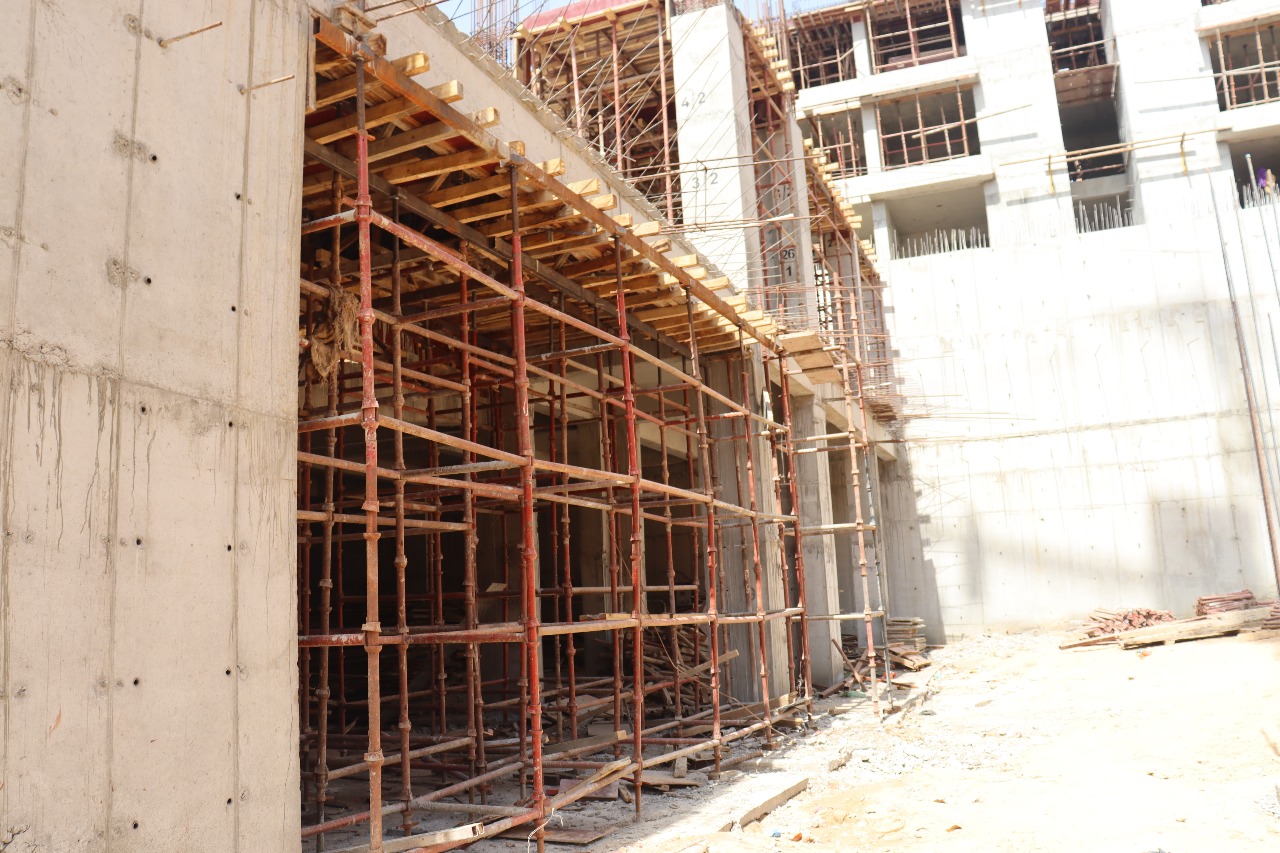

  • Building and infrastructure construction

  • Bridges, refineries, and industrial plants

  • Formwork support systems

  • Event stages and temporary platforms
